Our Product

A valve is a device that regulates the flow of a fluid (gases, fluidized solids, slurries, or liquids) by opening, closing, or partially obstructing various passageways.

We supply various types of valves for low as well as high pressure & flow ranges, with end fitting threading as per customers requirement. These are used by our customers for different applications.

- FUNCTIONS FROM VALVES ARE:

+ Stopping and starting flow

+ Reduce or increase a flow

+ Controlling the direction of flow

+ Regulating a flow or process pressure

+ Relieve a pipe system of a certain pressure

 TYPES OF VALVES

1. NEEDLE VALVE

- General Service

Forced or Bar stock body construction

Straight or angle Pattern with panel mounting option

Union bonnet / Screwed Bonnet / Integral Bonnet

Variety of end connections includes "PROGAS" single or twin ferrule tube fittings, Male or Female

threted NPT, BSP, ISO, DIN & JIS Tapered pipe ends.

- Severe Service

Size: 1/8" to 1"

Pressure Rating: Up to 6000 PSI

Materials: SS 316/SS 304 / Brass / Monel / Inconel / CS

100% factory tested

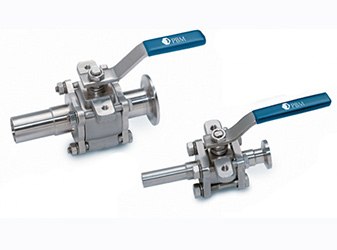

2. BALL VALVE

Size: 1/8" to 1"

Pressure Rating: Up to 2000 PSI

Materials: SS 316/SS 304 / Brass Monel / Inconel / CS

100% factory tested.

3. Check, Relief, Non -Return Valves

Large orifice for maximum flow & low pressure drop

Size: 1/8" to 1"

Materials: SS 316 / SS 304 / Brass / Monel / CS

End Connection: 1/8" to 1" NPT, BSP, BSPT, Male or Female

Threaded & "PROGAS" single or twin ferrule fitting ends.

100 % tested for crack & reseal performance

Products by “BALDOTA” and “HALE HAMILTON”

Progas system pvt ltd. is a leading manufacturer of precision valves, regulators and surface mount components for the control and application of liquids and gases used in the fabrication of semi-conductors, as well as in the chemical and petrochemical industries.

Regulators for diffusion resistance and handle safety of high purity gases, calibration gases, toxic gases and corrosive gases. Pressure control available in wide ranges.

Types of regulator are-

1. Single stage regulator

2. Double stage regulator

• Inlet pressure: upto 250 kg/cm2 (maximum)

• Outlet pressure: upto 1-100 kg/cm2

• End connection – ¼ ” to ½”

• Material used: SS 316 and Brass

Based on the requirement of our customers, we have developed an Economical Model of Gas Purification Panel. This is especially useful for customers who have Gas Chromatographic set-up.

Salient Features & Benefits:

- Deliver Ultra High Pure (UHP) Grade Gases

- Compact Design, Wall Mounted, Powder Coated

- Filters are easily detachable

- Suitable for 10kg/cm² inlet pressure & 7 kg/cm² outlet pressure

- Reduce baseline noise, drift problems, etc.

- Increase column life, GC detectors & reduces flame problems

- Improve reproducibility

- Save costly gases through toggle valves & gas distribution panel.

Our product range includes a wide range of mechanical auto gas change over, automatic change over manifold system, gas manual manifold system; ss gas cylinder manifold, semi-automatic manifold system and gas cylinder manifold.

Mechanical Auto Gas Change Over

We are specialized in offering a world-class range of Mechanical Auto Gas Change Over. It can be used for multiple cylinders banks. Using premium quality components and ultra-modern techniques, this system is manufactured under the strict surveillance of our seasoned technocrats at our sound manufacturing unit. The provided system goes through numerous quality tests in order to ensure its functioning prior to supply at our patrons' end.

Features:

+ Precisely designed

+ Smooth performance

+ High strength

Gas services	Air, N2, H2, He, Ace, Arg, N2o, P10 and other gas & also
	for flammable / nonflammable & corrosive gases.

Our Gas Manifolds System have been Approved by World leaders in Gas Industry.

We have supplied manifolds of different range from 2 cylinders to 20 cylinders for various gases also skid mounted trailers

Gas filling station: we are one of the leading manufacturer and exporter of gas filling stations. We supply gas filling stations on turnkey basis.

Working pressure: 20 bar to 300 Bar.

Our key customers with respect to filling station are M/s Linde India Pvt Ltd, M/s Matheson K Air, M/s Air Liquid Holding Ind Pvt Ltd.

Gas cylinder storage cabinet is main product for storage of gas cylinder in the laboratory furniture. Its function is for protecting the inside gas cylinder from the outside fire ,and the surroundings from the internal fire. The entire body of cabinet is made of steel plates, nice seamless body, good load-bearing ability, easy to assemble and repair, and convenient to transport ,and outside shape design is more elegant.

Progas system provides customized designs & services in respect of Trailers, Cylinder Quads, Cylinder Bank with interconnected manifold duly fitted with Inlet/Outlet Valves and High Pressure Regulators. These jobs are carried out strictly as per norms prescribed by various authorities. The tailor made jobs are offered for inspection to various agencies as per customers need. Cylinder cascade have either single or dual outlets and can comprise either pure or mixed gases. These packs provide an uninterrupted supply of gas and can be transported by a fork-lift truck.

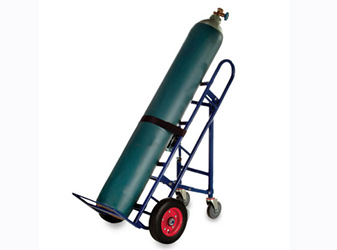

Trolleys are developed for the big cylinders as well as for the small cylinders. These hand trolleys are specially designed to hold and easily transport heavy compressed gas cylinders by persons of moderate strength. They feature arc welded tubular steel construction for strength. All models roll quietly and smoothly on large solid rubber tired wheels and castors for better maneuverability over rough or even surfaces. Trolleys are finished with scratch resistant, high gloss, electrostatically applied oven baked powder coat.

Gas cylinder storage cabinet is main product for storage of gas cylinder in the laboratory furniture. Its function is for protecting the inside gas cylinder from the outside fire ,and the surroundings from the internal fire. The entire body of cabinet is made of steel plates, nice seamless body, good load-bearing ability, easy to assemble and repair, and convenient to transport ,and outside shape design is more elegant.

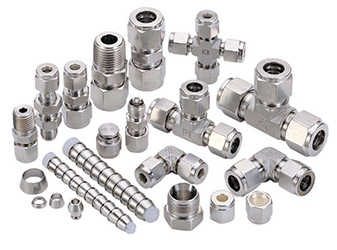

We stock a comprehensive range of plain-ended components including 45 and 90 bends, equal and reducing tees, concentric and eccentric reducers. We also stock a wide range of tube and pipe to fit both imperial and metric fittings.

• As per Standard : BS 4825: Part 2: 1991, ASTM A269, ASTM A270, ASTM A312

• Material Traceability to BS EN 10204

We specialize in customised fabrication providing engineering solutions to customer specification.

We also trade Orbital weld fitting of Dockweiler, Sandvik & Baldota

SPECIFICATION:

BEND	S.S 316L Seamless (ID- Electro Polish & OD- Mechanical Polish) ½“-4” OD×1.6 mm thk with bending radius R=1.5 D and ID Surface finish < 0.5 µ
TEE	S.S 316L Seamless (ID- Electro Polish & OD- Mechanical Polish) ½“-4” OD×1.6 mm thk with ID Surface finish < 0.5 µ & OD surface upto 800 Grits
REDUCER.	S.S 316L Seamless Concentric & Eccentric Reducers ( ½” OD to 4” OD) with Total length =25 mm/ straight face 55mm long on both sides.

Process Special Features- TIG Welded, Ground, Buffed, Electropolished & Right angled end to end preparation suitable for precise effective Orbital Welding.

Compliances- ASTM, ANSI, ASME, DIN, BPE, USFDA, & Custom specified fittings & finish etc..

APPLICATION:

• Dairy process plant

• Beverage Industries

• Food Industries

• Biotech Industries

• Gas Industries

• Electric & Electronic Industries

• Pharmaceutical Industries

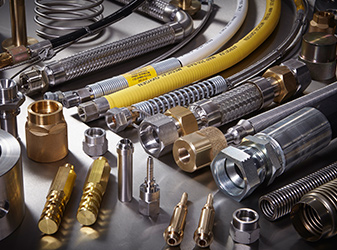

We at PROGAS SYSTEM PVT LTD have rapidly established ourselves as a market leader in the design, development and distribution of specialist hose assemblies for use in some of the most aggressive environments.

We supply an extensive range of industrial gas hose products ranging from 450 bar hydrogen and 350 bar oxygen hoses to cryogenic hoses for liquid transfer.

* PTFE Hoses

+ We has developed an extensive range of high pressure PTFE lined hose assemblies for conveying high-pressure gases. Applications include the charging of industrial and medical cylinders for a variety of gases including oxygen, nitrogen, acetylene and carbon dioxide. Hose assemblies are individually engineered to include special end fittings and safety features such as anti-whip cable restraints. Other specific PTFE product developments include gas manifold filing assemblies, used for coupling cylinders into banks with automatic changeover facilities.

* Flexible Metallic Hoses

+ The PTFE range is complimented by a series of corrugated stainless steel hoses designed to convey highly corrosive substances, high purity products and cryogenics.

+ We provide hoses for any industrial gas application, including medical and specific gas products. In addition, we are a partner of iGas Technology Solutions, a firm which offers its own packaged solutions for cylinder filling of industrial, medical and special gases.

We are trading hoses of companies like Aeroflex & Parker.

PROGAS SYSTEM PVT LTD specializes in the supply of complete skid mounted PRS (pressure reduction stations). The skid mounted stations are designed, shop fabricated and assembled, fully tested and packaged before transported to site.

The complete system includes high integrity equipment for filtration, heating, pressure reduction, regulation and metering. Monitoring is also possible. The stations are designed according to ASME B31.8 and B31.3 and customer specific requirements.

THE MAJOR BENEFITS OF SKID MOUNTED STATIONS ARE:

+ Single source reduces client man-hours spent

+ Pre-packaged factory built skids cost less than individual equipment and piping construction and installation on site

+ Reduces field construction time and overall project schedule

+ Complete factory test prior to shipment reduces risk

+ Easy installation in remote areas

+ Single source accountability

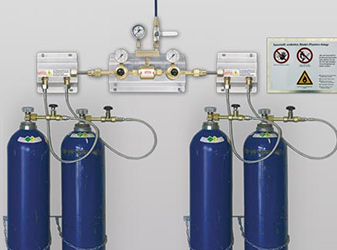

Cylinder Manifold system is a high pressure structure which is specially fabricated for interconnecting two or more numbers of cylinders to a common gas supply line when consumption requirement is high. Manifold interconnects two or more number of cylinders for the purpose of availability of more gas at source which can be transmitted continuously.

The Gas Manifold pressure can be reduced to the required pressure by a regulator. The pressure regulators can be conned to two manifolds for resulting in the changeover of manifolds. The changeover can be done manually or automatically by changing the gas supply from one set of cylinders to the other set without interrupting the continuity of the supply.

PROGAS SYSTEM can provide custom made gas specific manifolds for all types of applications required by the customers.
