Cupro Nickel Materials
Progas Systems Pvt. Ltd. offers a wide range of Cupro Nickel fittings, plates, and round bars for specialized industrial applications. We ensure high-quality materials and reliable solutions tailored to meet the unique requirements of our clients.
We are an authorized dealer for Sunflex brand products, providing trusted expertise and premium-grade components for critical applications.

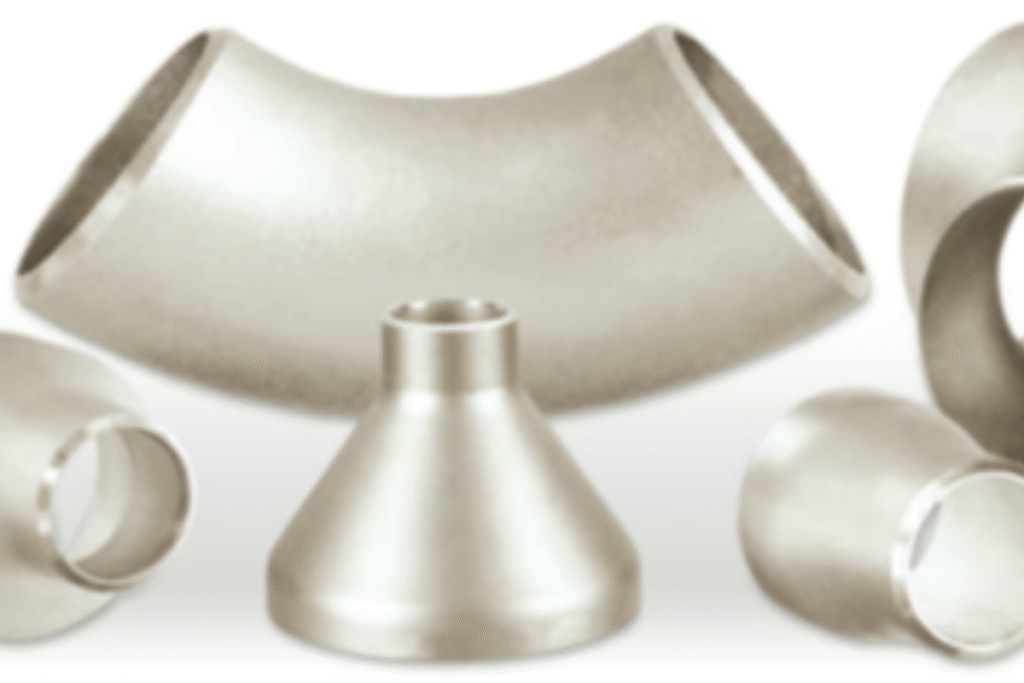

Butt Weld Fittings
Seam Welded Butt Welding Fittings
Material
90/10 Copper Nickel Alloy
- DIN 86013 2.1972, DIN 17664 / 2.0872
- BS2871, 2872, 2875 CN102
- EEMUA 144
- ASTM B466, B467, C70600, MIL-T-16420K C70600
- JIS H3300 C7060T
90/10 Copper Nickel Alloy
- DIN 17664 2.0882
- BS2871, 2872, 2875 CN107
- ASTM B466, B467, C71500, MIL-T-16420K C71500
- JIS H3300 C7150T

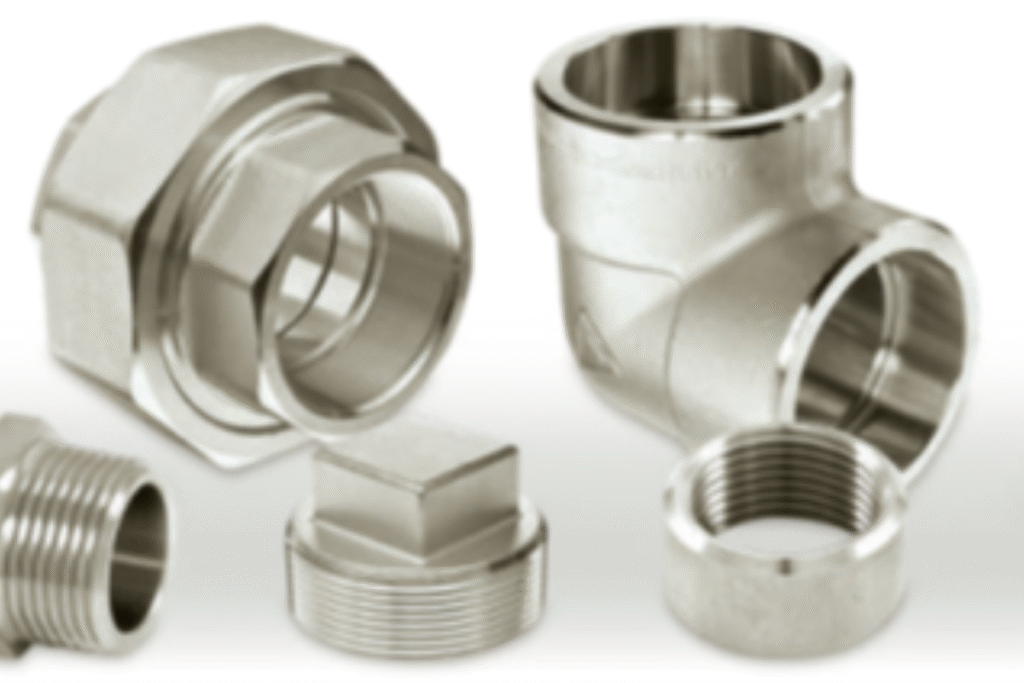

Forged Fittings
Standard Specification For Copper Nickel ASTM B466 Forged Pipe Fittings
- Specifications : ASTM B122, B171, B466, B467.
- Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.
- Size : 1/8" NB to 4” NB (Socketweld & Screwed-Threaded)
- Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS.
- Type : Socketweld Fittings, Screwed-Threaded Fittings.
- Grades : Copper Nickel 90/10 (C70600) Cupro Nickel - 70130 (C71500), UNS C71640.

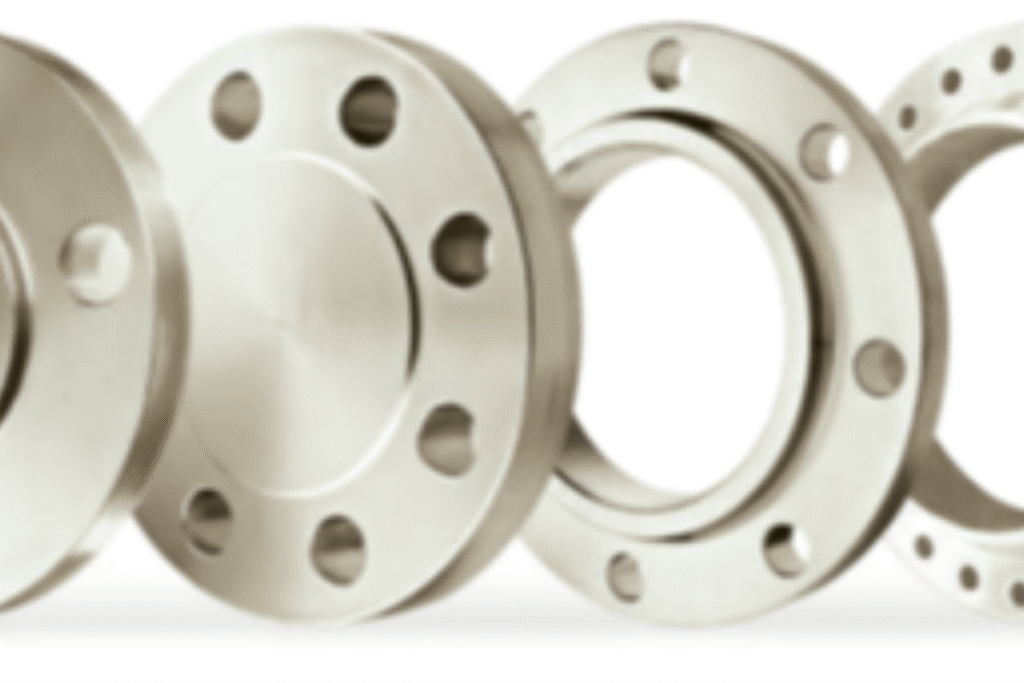

Flanges
Composite Flange
Composite weld-neck and composite slip-on flanges are made up from components, an inner Flange (Welding collar) in Cu-Ni 90/10 or Cu-Ni 70/30 and an outer flange in Carbon Steel Composite blind flanges are made up from a carbon steel blind flange with a welded-on and machined disc in Cu-Ni 90/10 or Cu-Ni 70/30.
Solid Flanges
Solid flanges in Cu-Ni 90/10 or Cu-Ni 70/30 are produced from bar or plate by hot forging and machining.
Product Range
Composite and solid flanges are available in standard sizes machining those of the relevant pipes and butt-welding fittings. Non-standard size flanges are produced to certain minimum quantity limitations available on application.
Material
- BS 2872 CN102, CN107.
- ASTM B151 C70600, C71500.
- JIS C7060, C7150.
- DIN CuNi10Fe1Mn, CuNi30Mn1Fe.
Dimension
- BS4501
- ASTM B16.5
- DIN 86037
- JIS B2240

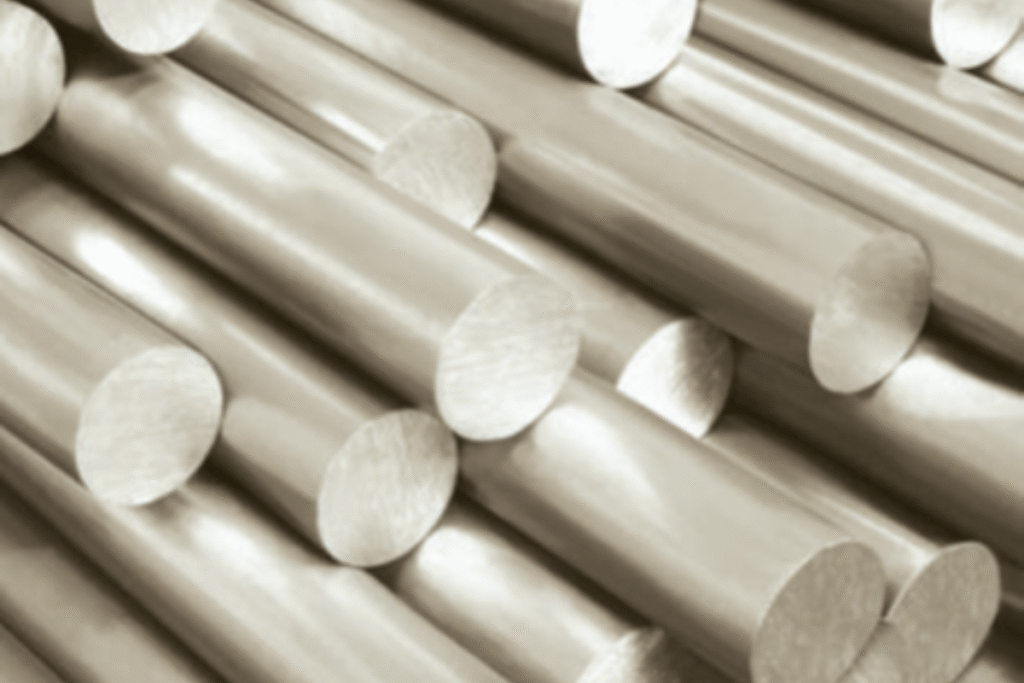

Round Bars
Cupro Nickel 90 / 10 Round Bar
- Specifications : ASTM B151, ASME SB151.
- Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI.
- Range : 5 mm to 500 mm thick in 100 mm to 6000 mm.
- Round Bars : 6 mm to 120 mm.
- Square Bars : 10 mm to 200 mm.
- Finish : Black, Bright Polished, Rough Turned, No. 4 Finish, Matt Finish, BA Finish.
- Length : 100 mm to 3660 mm Long.
- Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
